Features

• Weight Capacity: 300 LBS.
• Maximum Speed: UP TO 4 MPH
• Ground Clearance: 2.5"
• Turning Radius: 20.5"
• Overall length: 36"
• Overall Width‡: 23"
• Drive Wheels: 10" PNEUMATIC (std.) - 10" SOLID (opt.)
• Caster Wheels: 8" SOLID
• Anti tip Wheels: 6" SOLID
• Suspension: ACTIVE-TRAC
• Drive Train: 2-MOTOR, MID-WHEEL DRIVE
• Braking System: INTELLIGENT BRAKING
• Standard Electronics: 50 AMP, PG VSI CONTROLLER
• Optional Electronics: 70 AMP PG REMOTE PLUS OR DYNAMIC DX
• Accepts Specialty Controls: YES
• Standard Battery Charger: 4 AMP ON-BOARD
• Optional Battery Charger: 8 AMP OFF-BOARD
• Per Charge Range: UP TO 15 MILES
• Battery: TWO 12-VOLT, U-1
• Battery Weight: 24.5 LBS. each
• Base Weight: 77 LBS.
• Standard Seat Weight: 37 LBS. (MEDIUM BACK); 37 LBS. (without Universal Legrest Hangers) 43 LBS. (with Universal Legrest Hangers)
• Standard Seat: CONTOURED MEDIUM BACK
• Color Options: CHAMPAGNE, CANDY APPLE RED, VIPER BLUE, BLACK ONYX
• Warranty:: LIFETIME LIMITED ON FRAME; 2-YEAR ON ELECTRONICS; 18-MONTH ON MOTORS
• Contoured Medium Back Seat Standard Size: WIDTH: 18" DEPTH: 18"
• Contoured Medium Back Seat Allowable Sizes: WIDTH: 16" - 18" DEPTH: 16" - 18"
• Contoured High Back Seat Standard Size: WIDTH: 18" DEPTH: 18"
• Contoured High Back Seat Allowable Sizes: WIDTH: 16" - 20" DEPTH: 16" - 20"
• Specialty Seating Kit Standard Size: WIDTH: 18" DEPTH: 16"
• Specialty Seating Kit Allowable Sizes: WIDTH: 16" - 20" DEPTH: 16" - 18"
• Synergy Seat Standard Size: WIDTH: 18" DEPTH: 16"
• Synergy Seat Allowable Sizes: WIDTH: 10" - 20" DEPTH: 10" - 18"
• Synergy with Manual Recline Allowable Sizes: WIDTH: 10" - 20" DEPTH: 10" - 18"
• Synergy with Manual Tilt Allowable Sizes: WIDTH: 10" - 16" DEPTH: 10" - 16"
• TRU-Balance 2 Standard Size: WIDTH: 18" DEPTH: 16"
• TRU-Balance 2 Power Tilt Allowable Sizes: WIDTH: 14" - 20" DEPTH: 14" - 20"
• TRU-Balance 2 Power Recline Allowable Sizes: WIDTH: 14" - 20" DEPTH: 14" - 20"
• TRU-Balance 2 Power Tilt and Recline Allowable Sizes: WIDTH: 14" - 18" DEPTH: 14" - 18"
• Versa Tilt Standard Size: WIDTH: 18" DEPTH: 16"
• Versa Tilt Allowable Sizes: WIDTH: 14" - 18" DEPTH: 14" - 18"

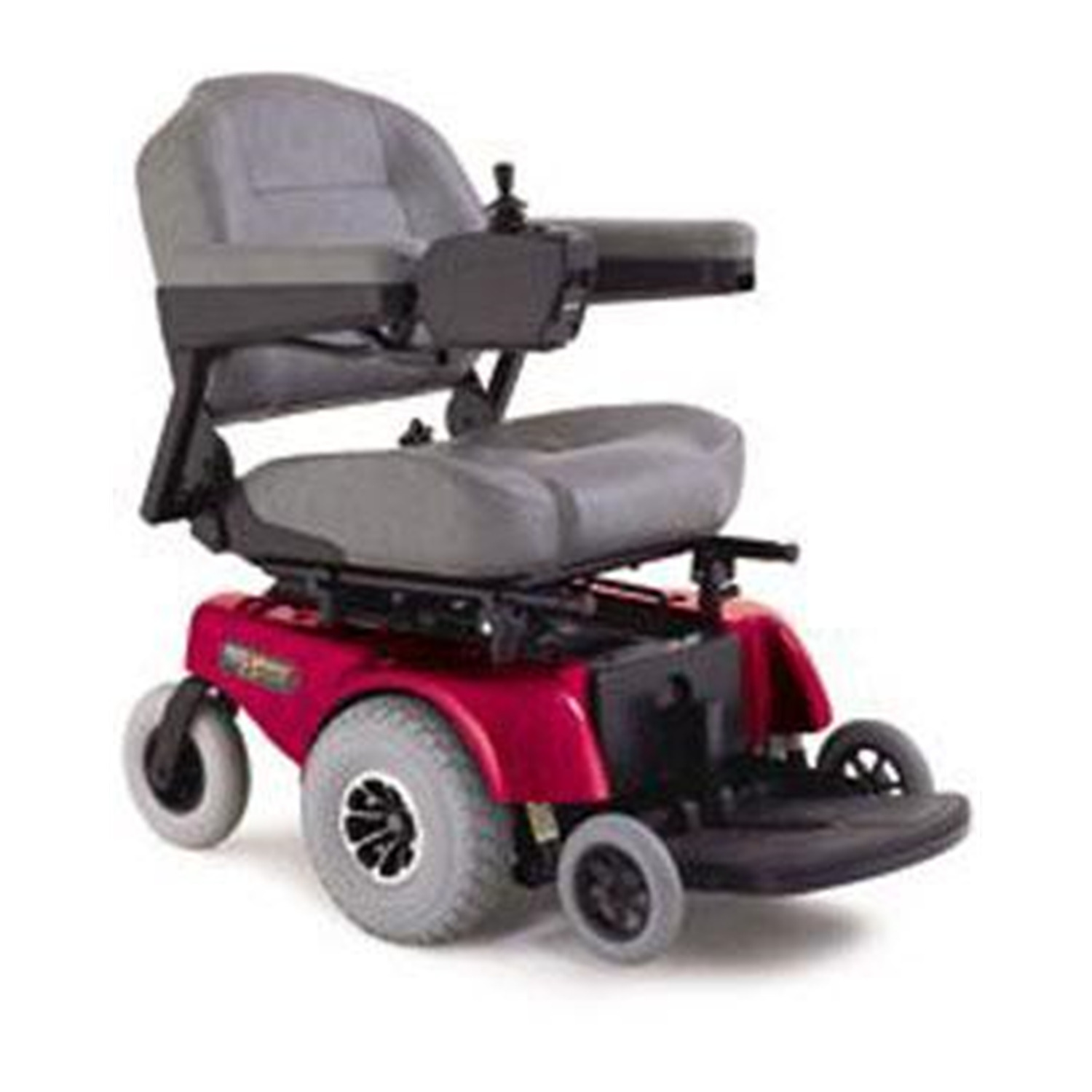

The Jazzy 1113 ATS offers you everything you need -- all of the "big chair" options and accessories, even full rehab capabilities -- on the most compact frame available. You'll take on tight spaces and narrow hallways without sacrificing a strong outdoor performance never before seen in a chair of this size. For sharp ramp transitions as well as a smooth and stable ride even over exceptionally rough and uneven terrain, the Jazzy 1113 ATS is equipped with Active-Trac Suspension. As an added plus, both the Jazzy 1113 ATS fully disassembles for transport.
