Features

• Weight Capacity: 500 LBS.
• Maximum Speed: UP TO 5 MPH
• Ground Clearance: 4"
• Turning Radius: 26.75"
• Overall length: 45.25"
• Overall Width‡: 30"
• Drive Wheels: 16" PNEUMATIC (std.) - 16" SOLID (opt.)
• Caster Wheels: 9" PNEUMATIC (std.) - 16" SOLID (opt.)
• Anti tip Wheels: 8" SOLID
• Suspension: ACTIVE-TRAC
• Drive Train: 2-POLE, MID-WHEEL DRIVE
• Braking System: INTELLIGENT BRAKING
• Standard Electronics: 70 AMP PG VSI CONTROLLER
• Optional Electronics: 70 AMP PG REMOTE PLUS, 70 AMP PG MICRODRIVE, OR DYNAMIC DX
• Accepts Specialty Controls: YES
• Standard Battery Charger: 5 AMP, ON-BOARD
• Optional Battery Charger: 5 AMP ON/8 AMP OFF COMBO
• Per Charge Range: UP TO 15 MILES
• Battery: TWO 12-VOLT, GROUP 24
• Battery Weight: 53.5 LBS. each
• Base Weight: 149.5 LBS.
• Standard Seat Weight: 37 LBS. (MEDIUM-BACK)
• Standard Seat: CONTOURED MEDIUM BACK
• Color Options: CANDY APPLE RED, VIPER BLUE, ONYX BLACK, CHAMPAGNE
• Warranty:: LIFETIME LIMITED ON FRAME; 2-YEAR ON ELECTRONICS; 18-MONTH ON MOTORS
• Contoured Medium Back Seat Standard Size: WIDTH: 26" DEPTH: 26"
• Contoured Medium Back Seat Allowable Sizes: WIDTH: 26" - 28" DEPTH: 20" - 26"
• Contoured High Back Seat Standard Size: WIDTH: 26" DEPTH: 26"
• Contoured High Back Seat Allowable Sizes: WIDTH: 26" - 28" DEPTH: 20" - 26"
• Synergy Seat Standard Size: WIDTH: 18" DEPTH: 16"
• Synergy Seat Allowable Sizes: WIDTH: 10" - 24" DEPTH: 10" - 24"
• Synergy with Manual Recline Allowable Sizes: WIDTH: 10" - 24" DEPTH: 10" - 24"

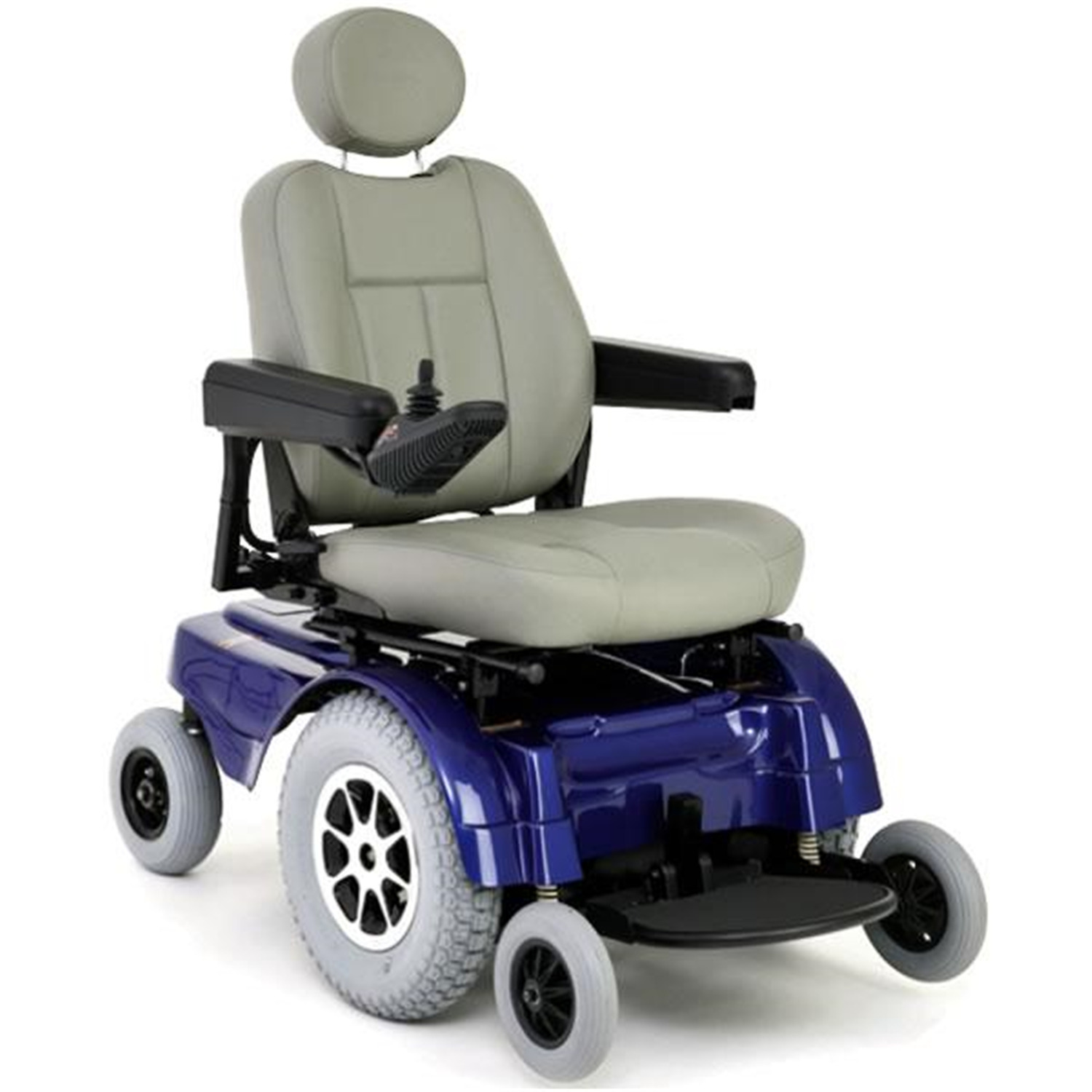

The Jazzy 1170 XL Plus is a stylish, high performance power chair that combines excellent indoor maneuverability with a top speed up to 4.5 mph and a weight capacity of up to 450 lbs. It is equipped standard with Active-Trac Suspension which provides for great outdoor performance an rough terrain handling. The Jazzy 1170 XL Plus is the ultimate power chair for the active outdoor user who still requires tight-quarter indoor maneuverability.
