Features

• Weight Capacity: 650 LBS.
• Maximum Speed: UP TO 4.25 MPH
• Ground Clearance: 4.25"
• Turning Radius: 26.25"
• Overall length: 47"
• Overall Width‡: 30.375"
• Drive Wheels: 16" PNEUMATIC (std.) OR 16" SOLID (opt.)
• Caster Wheels: 9" PNEUMATIC (std.) OR 9" SOLID (opt.)
• Anti tip Wheels: 8" SOLID
• Suspension: LIMITED
• Drive Train: 4-POLE, IN-LINE, MID-WHEEL DRIVE
• Braking System: INTELLIGENT BRAKING
• Standard Electronics: 100 AMP PG REMOTE PLUS
• Accepts Specialty Controls: NO
• Standard Battery Charger: 8 AMP OFF-BOARD
• Per Charge Range: UP TO 15 MILES; UP TO 20 (Only with Extended Range Package)
• Battery: TWO 12-VOLT, GROUP 24; FOUR NF-22 (Only with Extended Range Package)
• Battery Weight: 53.5 LBS. (38 LBS. with Extended Range Package)
• Base Weight: 176 LBS.
• Color Options: CHAMPAGNE, CANDY APPLE RED, VIPER BLUE, BLACK ONYX
• Warranty:: LIFETIME LIMITED ON FRAME; 2-YEAR ON ELECTRONICS; 18-MONTH ON MOTORS
• Contoured High Back Seat Standard Size: WIDTH: 24" DEPTH: 20"
• Contoured High Back Seat Allowable Sizes: WIDTH: 20" - 32" DEPTH: 18" - 28"
• Synergy Seat Standard Size: WIDTH: 24" DEPTH: 20"
• Synergy Seat Allowable Sizes: WIDTH: 20" - 32" DEPTH: 18" - 28"

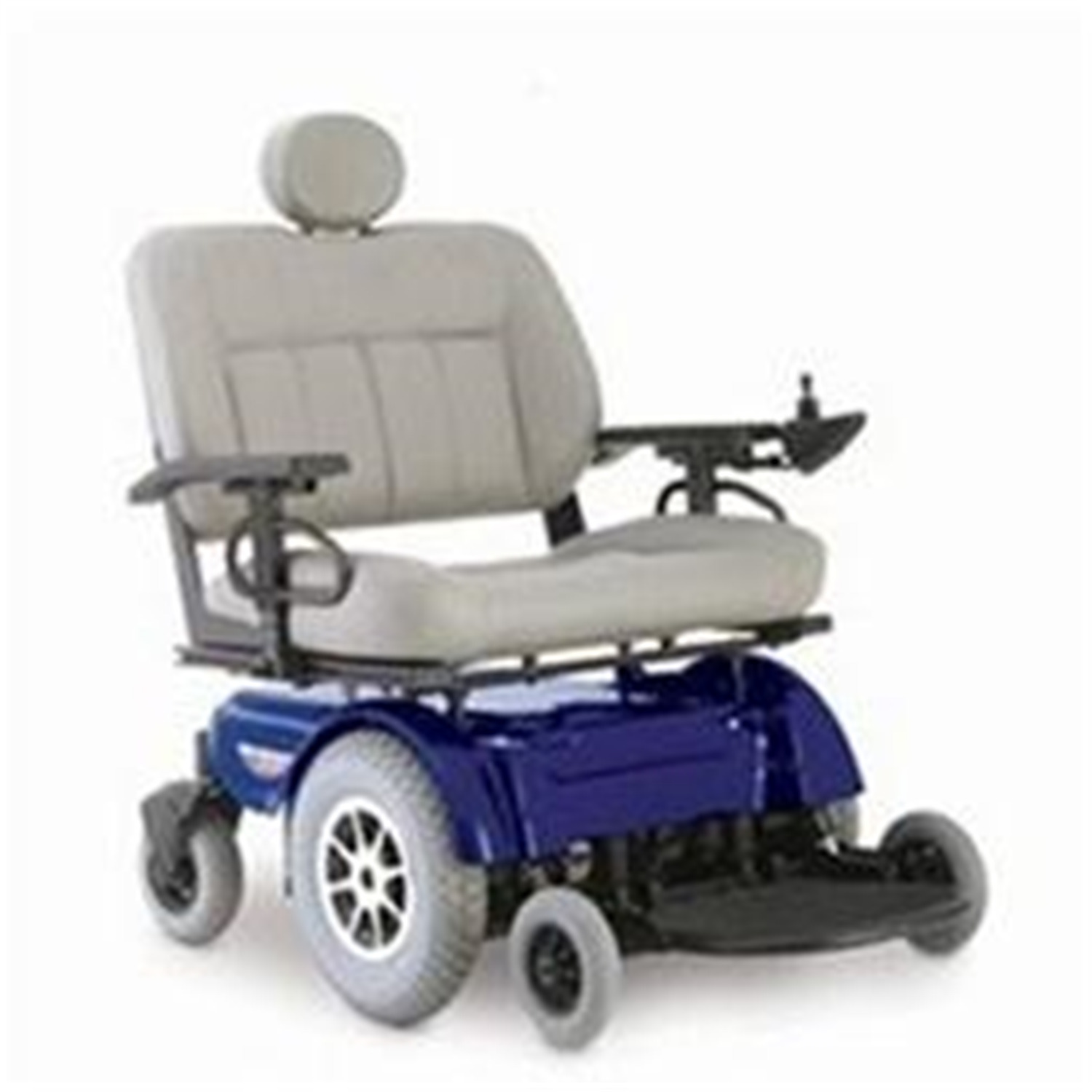

The Jazzy 1650 offers heavy-duty construction and performance components including upgraded motors, a reinforced frame, enhanced springs on the front anti-tip wheels, and the use of two Group 24 batteries. This allows the 1650 to accommodate a maximum weight capacity of 650 lbs. In addition, the Jazzy 1650 delivers style, high performance, and superb maneuverability.
