Features

• Weight Capacity: 300 LBS
• Maximum Speed: UP TO 4.25 MPH
• Ground Clearance: 2.25"
• Turning Radius: 20"
• Overall length: 35.5" WITHOUT FRONT RIGGINGS
• Overall Width‡: 25.125"
• Drive Wheels: 14"
• Caster Wheels: 6"
• Anti tip Wheels: 6"
• Suspension: ACTIVE TRAC ATX SUSPENSION
• Drive Train: TWO-MOTOR, IN-LINE, MID-WHEEL 6
• Braking System: INTELLIGENT BRAKING (ELECTRONIC, REGENERATIVE DISC BRAKES)
• Standard Electronics: 50 AMP, CONTROLLER
• Accepts Specialty Controls: YES
• Standard Battery Charger: OFF-BOARD, 5 AMP
• Per Charge Range: UP TO 16 MILES
• Battery: NF-22 (2) 12 VOLT, DEEP CYCLE
• Battery Weight: 38 LBS EACH
• Base Weight: 121.5 LBS
• Standard Seat Weight: 37 LBS
• Color Options: JAZZY RED, JAZZY BLUE
• Warranty:: 5-YEAR LIMITED WARRANTY ON FRAME; 1-YEAR WARRANTY ON ELECTRONICS; 1-YEAR LIMITED WARRANTY ON DRIVE MOTORS
• Contoured Medium Back Seat Standard Size: 18"x18"
• Contoured Medium Back Seat Allowable Sizes: 16" X 16" -18"x18"
• Contoured High Back Seat Standard Size: 18"W x18" - 20"D (depth adjustable)
• Contoured High Back Seat Allowable Sizes: 18"x18" - 22"x 22"
• Specialty Seating Kit Standard Size: 18"x16"
• Specialty Seating Kit Allowable Sizes: 16"x16" - 20"x20"
• Synergy Seat Standard Size: 18"x16"
• Synergy Seat Allowable Sizes: 10"x10" - 22"x22"

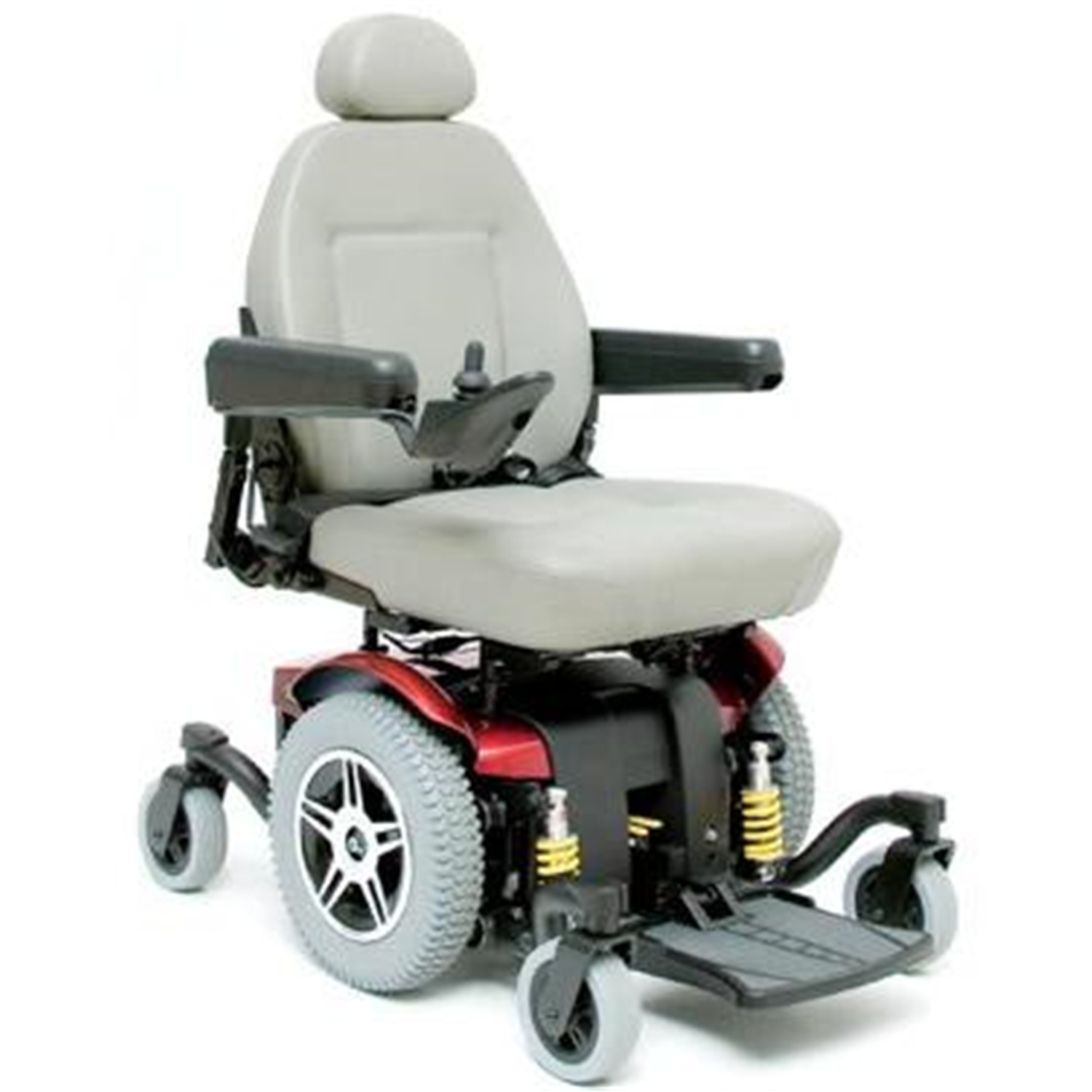

The Jazzy 614 delivers outstanding performance and superbmaneuverability in a powerful, stylish package. Enhanced in-line motors, advanaced ATX suspension and upgraded electronics make the 614 an innovative and exceptional overall value.
