Features

• Weight Capacity: 450 LBS
• Maximum Speed: UP TO 4.25 MPH
• Ground Clearance: 2.25"
• Turning Radius: 20"
• Overall length: 35.5" WITHOUT FRONT RIGGINGS
• Overall Width‡: 25.125"
• Drive Wheels: 14"
• Caster Wheels: 6"
• Anti tip Wheels: 6"
• Suspension: ACTIVE TRAC ATX SUSPENSION
• Drive Train: TWO-MOTOR, INLINE, MID WHEEL 6
• Braking System: INTELLIGENT BRAKING (ELECTRONIC, REGENERATIVE DISC BRAKES)
• Standard Electronics: 50 AMP CONTROLLER
• Accepts Specialty Controls: NO
• Standard Battery Charger: OFF-BOARD, 5 AMP
• Per Charge Range: UP TO 11 MILES
• Battery: NF-22 (2) 12 VOLT, DEEP CYCLE
• Battery Weight: 38 LBS EACH
• Base Weight: 121.5 LBS
• Standard Seat Weight: 42.5 LBS
• Color Options: JAZZY BLUE, JAZZY RED
• Warranty:: 5-YEAR LIMITED WARRANTY ON FRAME; 1-YEAR LIMITED WARRANTY ON ELECTRONICS; 1-YEAR LIMITED WARRANTY ON DRIVE MOTORS
• Contoured High Back Seat Standard Size: 20"W X 20-18"D (depth adjustable)
• Specialty Seating Kit Standard Size: 18"-16"
• Specialty Seating Kit Allowable Sizes: 16"x16"- 20"x20"
• Synergy Seat Standard Size: 18"x16"
• Synergy Seat Allowable Sizes: 18"- 24"x 18"-24"

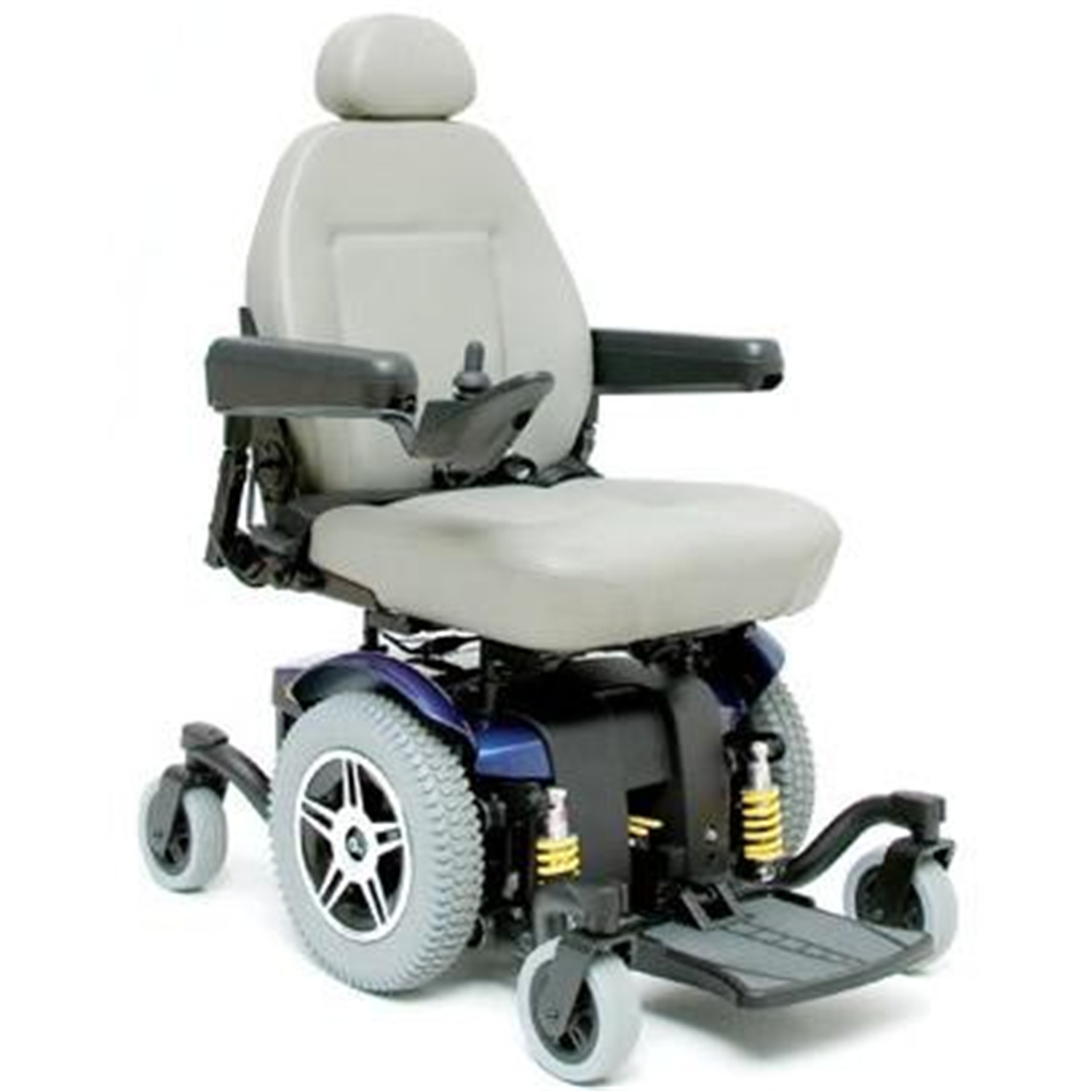

The Jazzy 614 HD delivers outstanding performance and superbmaneuverability in a powerful, stylish package. Enhanced in-line motors, advanaced ATX suspension and upgraded electronics make the 614 HD an innovative and exceptional overall value.
